Zinky

Zinky

₹16,000.00

Product Includes
ZINKY SoC board / USB cable for power

✅ In Stock

Board Protection

Product price: ₹16,000.00
Total options:
Order total:
Category Brand: ,
Spartan 7 XILINX

Description

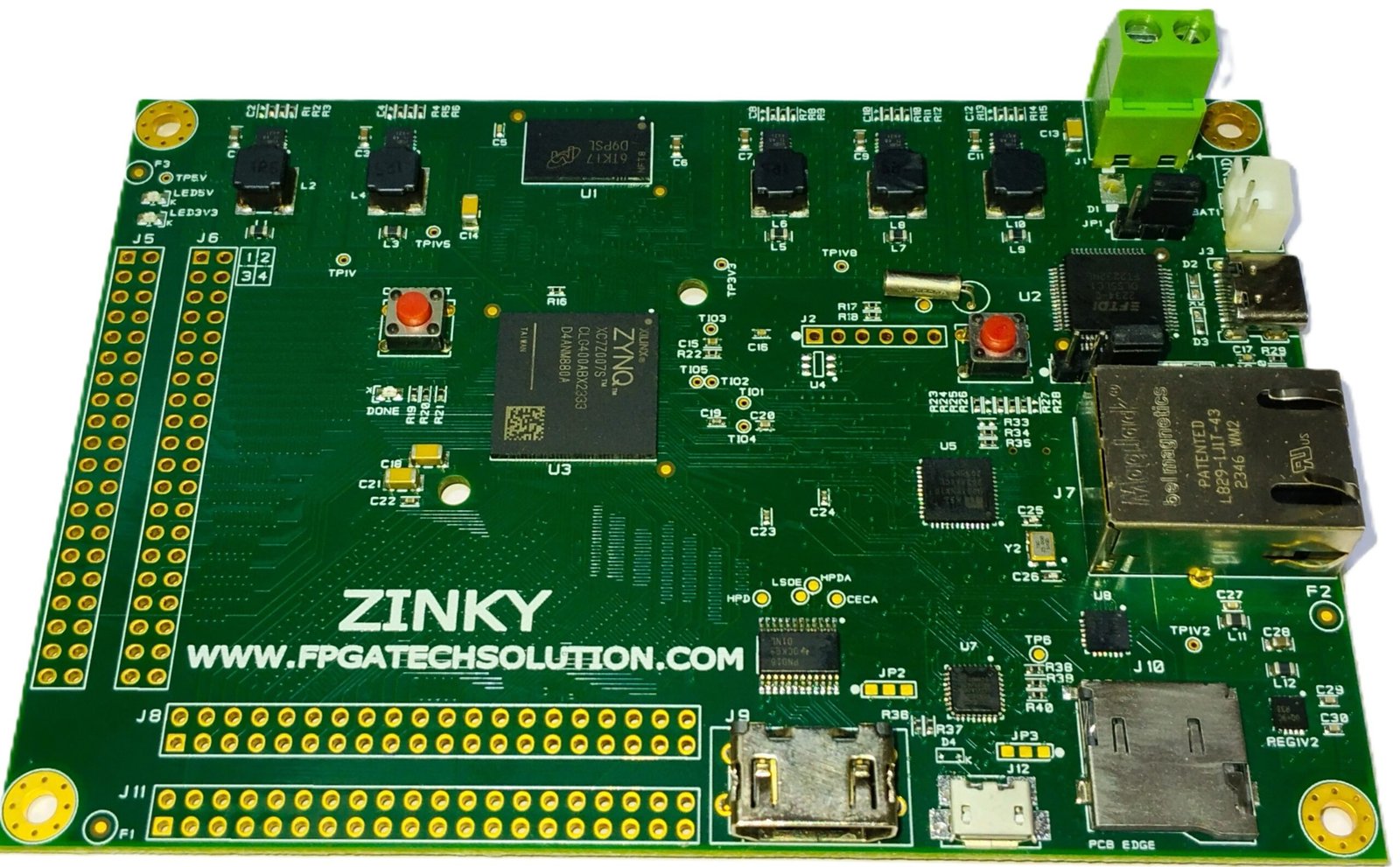

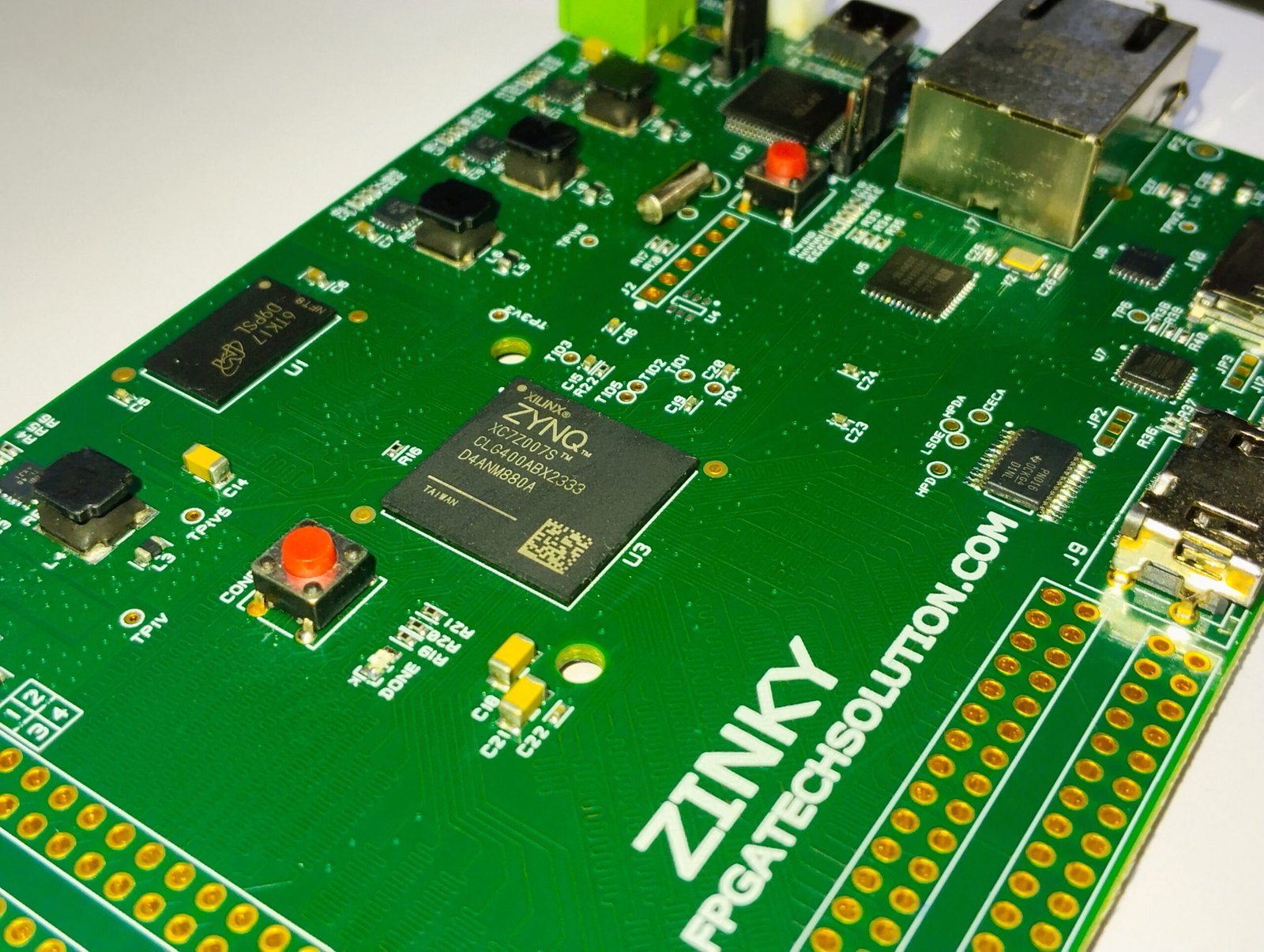

The Zinky Z7 is a ready-to-use embedded software and digital circuit development board built around the AMD Zynq™-7000 family. The Zynq-7000 tightly integrates a dual-core ARM Cortex-A9 processor with AMD 7-series Field Programmable Gate Array (FPGA) logic.

A rich set of multimedia and connectivity peripherals make the Zinky Z7 a formidable single-board computer. With 120+ GPIO, HDMI output, and high DDR3 bandwidth establish the Zinky Z7 as an affordable, yet capable, solution for high-end embedded vision applications. Attaching additional hardware is made easy by the Zinky Z7’s burg connectors, allowing access to peripheral boards, including motor controllers, sensors, displays, and more.

The Zinky Z7 is supported by AMD’s Vivado Design Suite, including the free WebPACK version. You can also interact with the processing system (PS) with AMD’s Vitis Unified Software Platform and PetaLinux Tools.

Guides and demos are available to help you get started quickly with the Zinky Z7.

Features

  • ZYNQ Processor
  • 667MHz dual-core Cortex-A9 processor
  • DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
  • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
  • Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
  • Programmable from JTAG, Quad-SPI flash, and microSD card (Micro B USB cable NOT included).
  • Programmable logic equivalent to Artix-7 FPGA
  • Memory
  • 2Gb DDR3 with 32-bit bus @ 533 MHz (1066 MHz)
  • 16 MB Quad-SPI Flash(Winbond W25Q128JV) with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64™ compatible identifier
  • microSD slot
  • Power
  • Powered from USB or any 5V external power source
  • USB and Ethernet
  • Gigabit Ethernet PHY
  • USB-JTAG Programming circuitry
  • USB-UART bridge
  • USB 2.0 OTG PHY with embedded Host* and Device capabilities
  • ESP8266 WiFi
  • Audio and Video
  • HDMI source port (output) with CEC
  • Audio jacks
  • Switches, Push-buttons, and LEDs
  • Powered from USB or any 5V external power source
  • Switches, Push-buttons, and LEDs
  • 4 push-buttons
  • 8 slide switches
  • 16 LEDs
  • 1 RGB LEDs
  • 4 seven segments
  • 16by2 LCD connector
  • TFT display 160×128 connector
  • OLED display 128*32 connector
  • Expansion Connectors
  • RTC
  • 2 Pmod ports
  • 24 GPIO (3.3V or 1.8V)

Package Includes

  • ZINKY SoC board
  • USB cable for power

Product documents

User Manual

Reviews

There are no reviews yet.

Be the first to review “Zinky”

Your email address will not be published. Required fields are marked *

Description

The Zinky Z7 is a ready-to-use embedded software and digital circuit development board built around the AMD Zynq™-7000 family. The Zynq-7000 tightly integrates a dual-core ARM Cortex-A9 processor with AMD 7-series Field Programmable Gate Array (FPGA) logic.

A rich set of multimedia and connectivity peripherals make the Zinky Z7 a formidable single-board computer. With 120+ GPIO, HDMI output, and high DDR3 bandwidth establish the Zinky Z7 as an affordable, yet capable, solution for high-end embedded vision applications. Attaching additional hardware is made easy by the Zinky Z7’s burg connectors, allowing access to peripheral boards, including motor controllers, sensors, displays, and more.

The Zinky Z7 is supported by AMD’s Vivado Design Suite, including the free WebPACK version. You can also interact with the processing system (PS) with AMD’s Vitis Unified Software Platform and PetaLinux Tools.

Guides and demos are available to help you get started quickly with the Zinky Z7.

Features

  • ZYNQ Processor
  • 667MHz dual-core Cortex-A9 processor
  • DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
  • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
  • Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
  • Programmable from JTAG, Quad-SPI flash, and microSD card (Micro B USB cable NOT included).
  • Programmable logic equivalent to Artix-7 FPGA
  • Memory
  • 2Gb DDR3 with 32-bit bus @ 533 MHz (1066 MHz)
  • 16 MB Quad-SPI Flash(Winbond W25Q128JV) with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64™ compatible identifier
  • microSD slot
  • Power
  • Powered from USB or any 5V external power source
  • USB and Ethernet
  • Gigabit Ethernet PHY
  • USB-JTAG Programming circuitry
  • USB-UART bridge
  • USB 2.0 OTG PHY with embedded Host* and Device capabilities
  • ESP8266 WiFi
  • Audio and Video
  • HDMI source port (output) with CEC
  • Audio jacks
  • Switches, Push-buttons, and LEDs
  • Powered from USB or any 5V external power source
  • Switches, Push-buttons, and LEDs
  • 4 push-buttons
  • 8 slide switches
  • 16 LEDs
  • 1 RGB LEDs
  • 4 seven segments
  • 16by2 LCD connector
  • TFT display 160×128 connector
  • OLED display 128*32 connector
  • Expansion Connectors
  • RTC
  • 2 Pmod ports
  • 24 GPIO (3.3V or 1.8V)

Package Includes

  • ZINKY SoC board
  • USB cable for power

Product documents

User Manual

Warranty and Return Policy

Invent Logic warrants its products against defects in materials and workmanship for a period of 90 days from the date of purchase.
If you discover a defect, Invent Logics. will, at its option, repair or replace.

After 90 days, products can still be sent in for repair or replacement. There will be some inspection/labor/repair fee.
